biu::Matrix< T > Class Template Reference

#include <Matrix.hh>

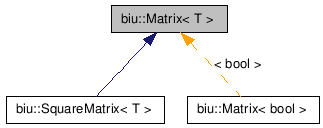

Inheritance diagram for biu::Matrix< T >:

[legend]

---

Detailed Description

template<class T>
class biu::Matrix< T >

A generic matrix that allows matrix operations.

Definition at line 15 of file Matrix.hh.

Public Member Functions
T &	at (const size_t r, const size_t c)
T	at (const size_t r, const size_t c) const
std::vector< T >	columnVec (const size_t col) const
	Matrix (const Matrix< T > &mat)
	Matrix (const size_t r, const size_t c, const T mat[])
	Matrix (const size_t r, const size_t c, const T &val)
	Matrix (const size_t r, const size_t c)
	Matrix ()
size_t	numColumns () const
size_t	numRows () const
std::vector< T >	operator * (const std::vector< T > &vec) const
Matrix< T >	operator * (const T &c) const
Matrix< T >	operator * (const Matrix< T > &mat) const
Matrix< T > &	operator *= (const T &c)
Matrix< T > &	operator *= (const Matrix< T > &mat)
bool	operator!= (const T &val) const
bool	operator!= (const Matrix< T > &mat) const
Matrix< T >	operator+ (const T &c)
Matrix< T >	operator+ (const Matrix< T > &mat)
Matrix< T >	operator- (const T &c)
Matrix< T >	operator- (const Matrix< T > &mat)
Matrix &	operator= (const T &val)
Matrix &	operator= (const Matrix< T > &mat)
bool	operator== (const T &val) const
bool	operator== (const Matrix< T > &mat) const
const T *const	operator[] (const size_t row) const
T *const	operator[] (const size_t row)
void	resize (const size_t row, const size_t col, const T &defVal)
void	resize (const size_t row, const size_t col)
	~Matrix ()
Protected Attributes
size_t	cols
size_t	rows
T **	v

---

Constructor & Destructor Documentation

template<class T>

biu::Matrix< T >::Matrix

(

)

creates an empty matrix of dimensions (0,0)

template<class T>

biu::Matrix< T >::Matrix	(	const size_t	r,
		const size_t	c
	)

creates an unitialised matrix of given dimensions

Parameters:

	r	the row number of the matrix
	c	the column number of the matrix

template<class T>

biu::Matrix< T >::Matrix	(	const size_t	r,
		const size_t	c,
		const T &	val
	)

creates a matrix and fills all elements

Parameters:

	r	the row number of the matrix
	c	the column number of the matrix
	val	the default value for the matrix entries

template<class T>

biu::Matrix< T >::Matrix	(	const size_t	r,
		const size_t	c,
		const T	mat[]
	)

creates a matrix that contains a copy of the given matrix

Parameters:

	r	the row number of the matrix
	c	the column number of the matrix
	mat	an array containing the matrix in the form element(row,col) = mat[row*c+col] with row = (0,r] && col = (0,c]

template<class T>

biu::Matrix< T >::Matrix

(

const Matrix< T > &

mat

)

copy constructor including matrix resizing

Parameters:

mat

the matrix this matrix should be a copy of

template<class T>

biu::Matrix< T >::~Matrix

(

)

destruction and freeing memory

---

Member Function Documentation

template<class T>

T& biu::Matrix< T >::at	(	const size_t	r,
		const size_t	c
	)			[inline]

direct access to element (r,c)

Parameters:

	r	the row to access
	c	the column to access

Returns:

the matrix element at position (r,c)

template<class T>

T biu::Matrix< T >::at	(	const size_t	r,
		const size_t	c
	)			const [inline]

constant access to element (r,c)

Parameters:

	r	the row to access
	c	the column to access

Returns:

the matrix element at position (r,c)

template<class T>

std::vector<T> biu::Matrix< T >::columnVec

(

const size_t

col

)

const

access to a matrix column

Parameters:

col

the column to access

Returns:

the column vector

template<class T>

size_t biu::Matrix< T >::numColumns

(

)

const [inline]

number of columns

Returns:

column number

template<class T>

size_t biu::Matrix< T >::numRows

(

)

const [inline]

number of rows

Returns:

row number

template<class T>

std::vector<T> biu::Matrix< T >::operator *

(

const std::vector< T > &

vec

)

const

special case of * column number has to equal vec size

Parameters:

vec

the column vector to multiply with

Returns:

a new column vector representing (this * vec)

template<class T>

Matrix<T> biu::Matrix< T >::operator *

(

const T &

c

)

const

matrix * constant

Parameters:

c

the constant to multiply all elements with

Returns:

a new matrix representing (this * c)

template<class T>

Matrix<T> biu::Matrix< T >::operator *

(

const Matrix< T > &

mat

)

const

matrix * matrix row number have to equal column number and vice versa

Parameters:

mat

the matrix to multiply with

Returns:

a new matrix representing (this * mat)

template<class T>

Matrix<T>& biu::Matrix< T >::operator *=

(

const T &

c

)

matrix *= constant

Parameters:

c

the constant to multiply all elements with

Returns:

*this

template<class T>

Matrix<T>& biu::Matrix< T >::operator *=

(

const Matrix< T > &

mat

)

matrix *= matrix row number have to equal column number and vice versa

Parameters:

mat

the matrix to multiply with

Returns:

*this

template<class T>

bool biu::Matrix< T >::operator!=

(

const T &

val

)

const [inline]

test if at least one element doesnt equal val

Parameters:

val

the value to compare with

Returns:

true if at least one element are is not equal, false otherwise

template<class T>

bool biu::Matrix< T >::operator!=

(

const Matrix< T > &

mat

)

const [inline]

test for inequality

Parameters:

mat

the matrix to compare with

Returns:

true if dimensions or at least one element are is not equal, false otherwise

template<class T>

Matrix<T> biu::Matrix< T >::operator+

(

const T &

c

)

matrix + constant

Parameters:

c

the constant to add to all elements

Returns:

a new matrix representing (this + c)

template<class T>

Matrix<T> biu::Matrix< T >::operator+

(

const Matrix< T > &

mat

)

matrix + matrix row and column number have to be equal

Parameters:

mat

the matrix to add

Returns:

a new matrix representing (this + mat)

template<class T>

Matrix<T> biu::Matrix< T >::operator-

(

const T &

c

)

matrix - constant

Parameters:

c

the constant to substract from all elements

Returns:

a new matrix representing (this - c)

template<class T>

Matrix<T> biu::Matrix< T >::operator-

(

const Matrix< T > &

mat

)

matrix - matrix row and column number have to be equal

Parameters:

mat

the matrix to substract

Returns:

a new matrix representing (this - mat)

template<class T>

Matrix& biu::Matrix< T >::operator=

(

const T &

val

)

all elements = val

Parameters:

val

the new value for all matrix entries

Returns:

*this

template<class T>

Matrix& biu::Matrix< T >::operator=

(

const Matrix< T > &

mat

)

assignment including resizing

Parameters:

mat

the matrix this matrix should be a copy of

Returns:

*this

template<class T>

bool biu::Matrix< T >::operator==

(

const T &

val

)

const [inline]

test if all elements == val

Parameters:

val

the value to compare with

Returns:

true if all elements are equal, false otherwise

template<class T>

bool biu::Matrix< T >::operator==

(

const Matrix< T > &

mat

)

const [inline]

test for equality

Parameters:

mat

the matrix to compare with

Returns:

true if dimensions and all elements are equal, false otherwise

template<class T>

const T* const biu::Matrix< T >::operator[]

(

const size_t

row

)

const [inline]

constant access to row i

Parameters:

row

the row to access

Returns:

constant array access to the row

template<class T>

T* const biu::Matrix< T >::operator[]

(

const size_t

row

)

[inline]

access to row

Parameters:

row

the row to access

Returns:

array access to the row

template<class T>

void biu::Matrix< T >::resize	(	const size_t	row,
		const size_t	col,
		const T &	defVal
	)

Resizes the matrix. If the the dimensions are increased, the new fields are filled with the given default value

Parameters:

	row	the new row number
	col	the new column number
	defVal	the default value for new matrix elements

template<class T>

void biu::Matrix< T >::resize	(	const size_t	row,
		const size_t	col
	)

Resizes the matrix. If the the dimensions are increased, the new fields are not initialised.

Parameters:

	row	the new row number
	col	the new column number

---

Field Documentation

template<class T>

size_t biu::Matrix< T >::cols [protected]

matrix dimensions = number of columns

Definition at line 20 of file Matrix.hh.

template<class T>

size_t biu::Matrix< T >::rows [protected]

matrix dimensions = number of rows

Definition at line 18 of file Matrix.hh.

template<class T>

T** biu::Matrix< T >::v [protected]

the data store

Definition at line 22 of file Matrix.hh.

---

The documentation for this class was generated from the following file:

• src/biu/Matrix.hh
